Kubota BG Series

    Kubota BG Series

                               Kubota BG Series pic 1






for earth, for life

D1105-BG2-SAE-2

D1105-BG1-SAE-2 17592-11000 mech. controlled

             Kubota BG Series pic 2

Model

Stand-by
(SAE J1349)
50 Hz 1500 rpm kW
(HP)

Continuous
(SAE J1349)
50 Hz 1500 rpm kW
(HP)

Stand-by
(SAE J1349)
60 Hz 1800 rpm kW
(HP)

Continuous
(SAE J1349)
60 Hz 1800 rpm kW
(HP)

D1105-BG2

9.5 (12.7)

8.4 (11.3)



D1105-BG2-SAE-2 Power Pack

Technical specification

Model D1105-BG
Number of Cylinders  3
Type  Vertical, water-cooled, 4 cycle diesel engine
Bore * Stroke            mm (in.)
Total Displacement
STEANDBY
ISO 3046                 kW/min-1 (rpm)
SAE J-1349            HP/min-1 (rpm)
     9.5 / 1500                         11.5 / 1800
12.7 / 1500                        15.4 / 1800
NET Continuous
ISO 3046                kW/min-1 (rpm)
SAE J-1349           HP/min-1 (rpm)
 8.4 / 1500                             10.1 / 1800
11.3 / 1500                            13.5 / 1800
Governer Regulation  Less than 5%
Combustion Chamber Type  Spherical type (E-T.V.C.S. : Three Vortex Combustion System)
Fuel Injection Pump Type  PFR
Governer   Mechanical all speed governer
Direction of Rotation  Counter-clockwise (viewed from flywheel side)
Nozzle Type  Throttle type
Injection Timing  0,2705 rad (15.50 °) before T.D.C.
Firing Order  1-2-3
Injection Pressure  13.73 Mpa (140.0 kgf/cm2, 1991 psi)
Compressiion Ratio  24,0 : 1
Lubricating System  Forced lubrication by trochoid pump
Oil Pressure Indication  Electrical type switch
Lubrication Filter  Full flow paper filter (Cartridge type)
Cooling System Pressurized radiator, forced circulation with water pump
Starting System Electric Starting with Starter
Starting Motor  12 V, 1.0 kW
Starting Support Device  By glow plug in combustion chamber
EGR  NONE
Battery  12 V, 65 AH, equivalent
Charging Alternator  12 V, 360 W
Fuel  Diesel Fuel №. 2-D (ASTM D975)
Lubricating Oil (API Classification)  СF or other applicable grade
Lubricating Oil Capacity  5.1 L (1.3 U.S. gals)
Weight (Dry)                         kg (Ibs)  110 (242)
Instalation Data   1500 rpm (50 Hz)                                    1800 rpm (60 Hz)
Heat rejection                     kcal/hr                        9930                                                         -
Exhaust gas volume          m3/hr                        99.9                                                          -
Combustion air
requirement                        m3/hr
                       44.0                                                          -
Water pump                       l/min                         31                                                            -
Fun pulley                          mm  98
Fun drive pulley                 mm  112
 Pulley ratio                          0.875


1) Specifications are subject to change without notice.
2) Dry weight is according to KUBOTA's standard specification.
3) Recommended Coolant Capacity : With radiator.
4) Lubricating oil capacity : With oil filter cartridge.
When specification varies, the weight will vary accordingly.

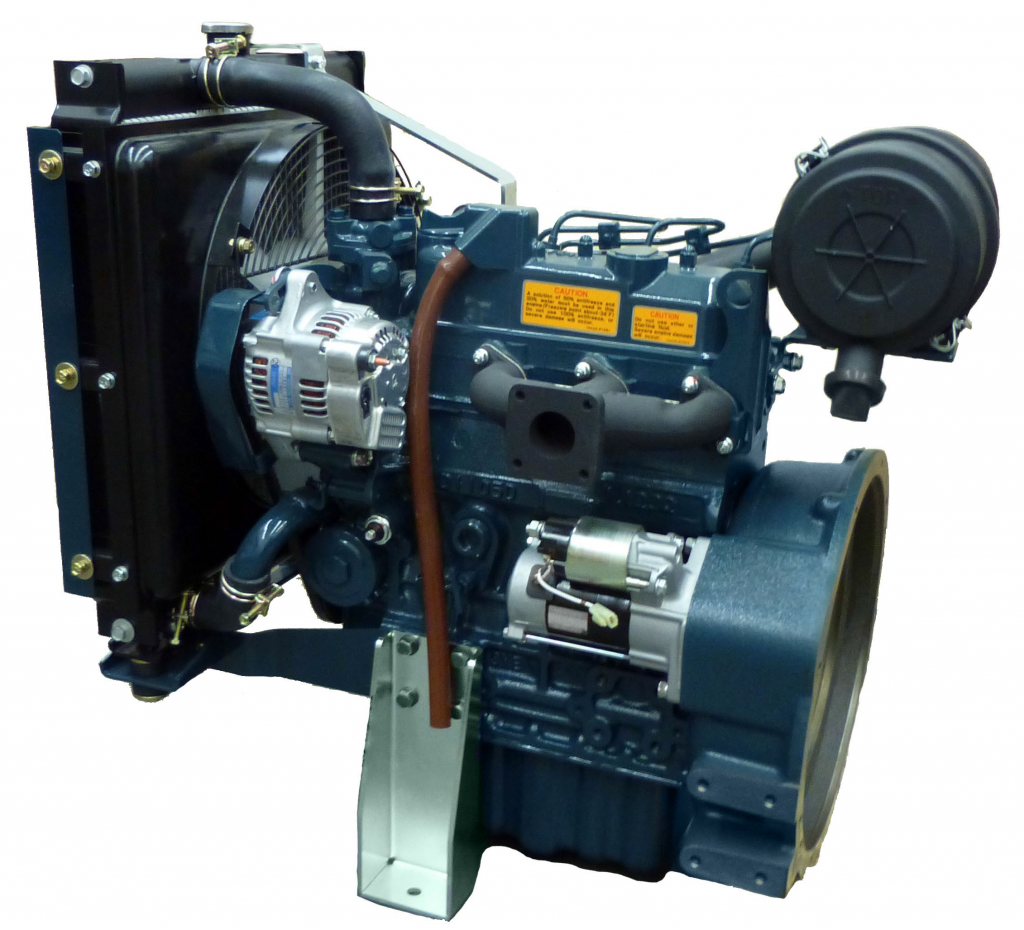

D1105-BG2-SAE-2 Power Pack

    Kubota BG Series pic 3

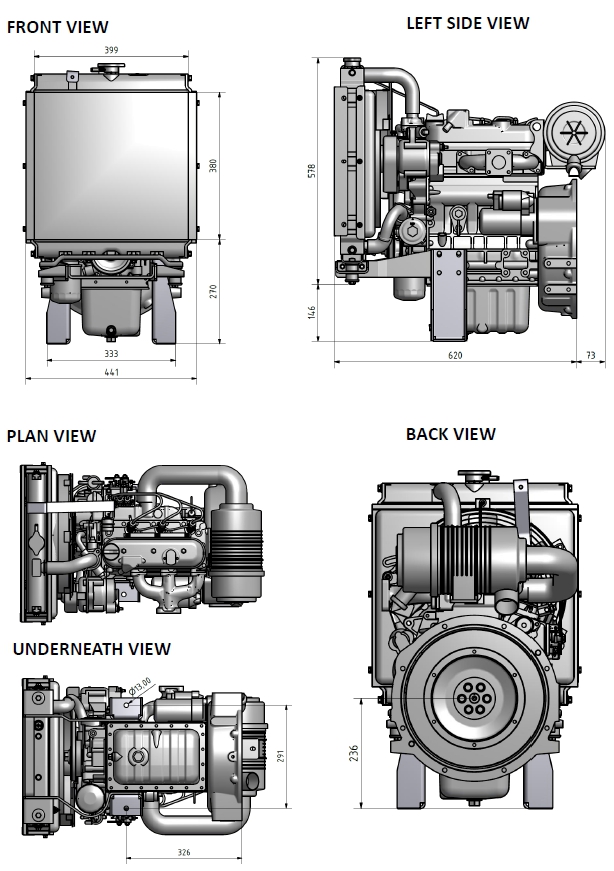

D1105-BG2-SAE-2 Power Pack

             Kubota BG Series pic 4






D1105-BG2-SAE-2 Power Pack

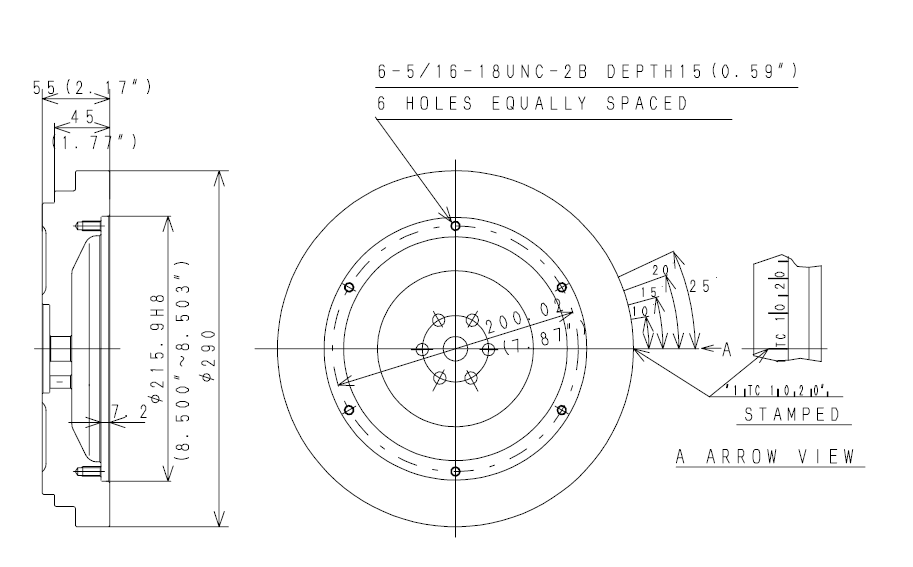

Flywheel 1G680-25010 SAE 6 1/2“





          Kubota BG Series pic 5

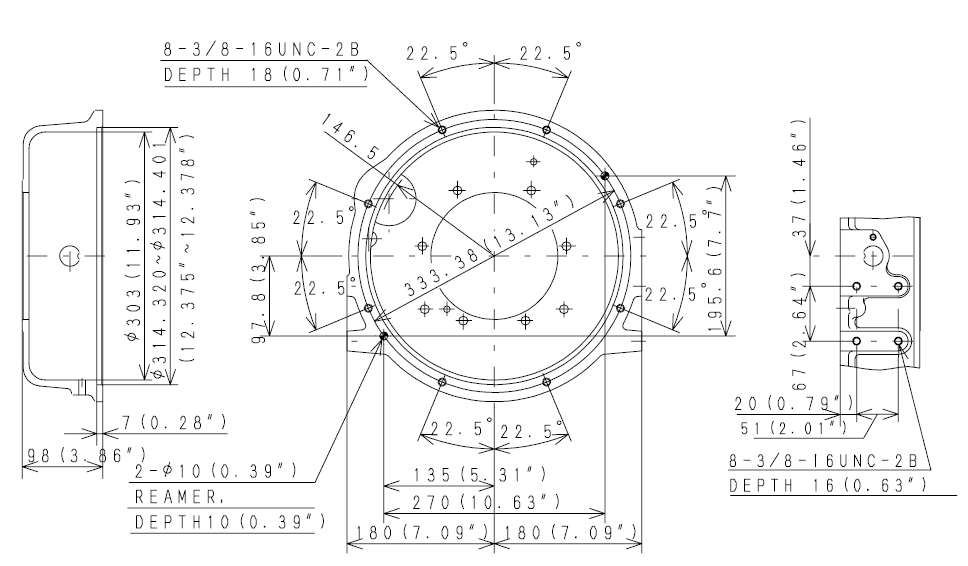

Flywheel housing 16683-04610 SAE No. 5 short

           Kubota BG Series pic 6







D1105-BG2-SAE-2 Power Pack

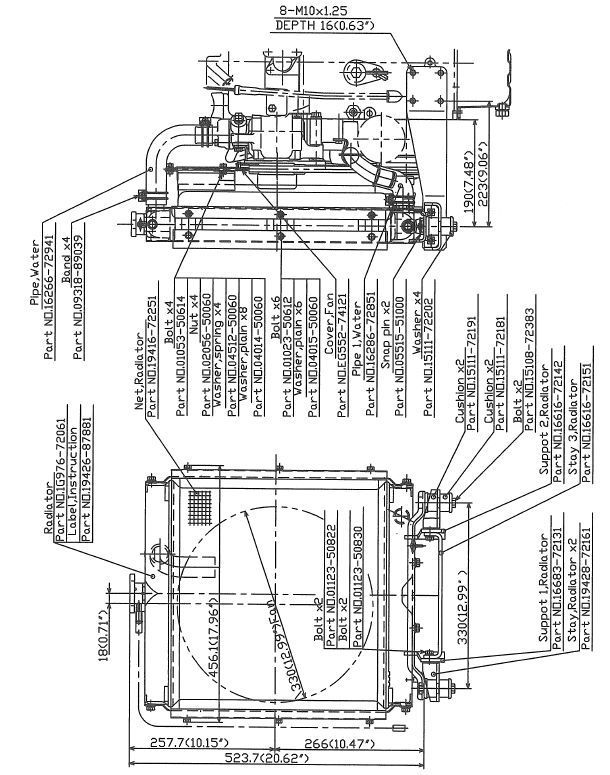

Radiator Kit 518



       Kubota BG Series pic 7



Reserve Tank Kit 494 - is required

for earth, for life

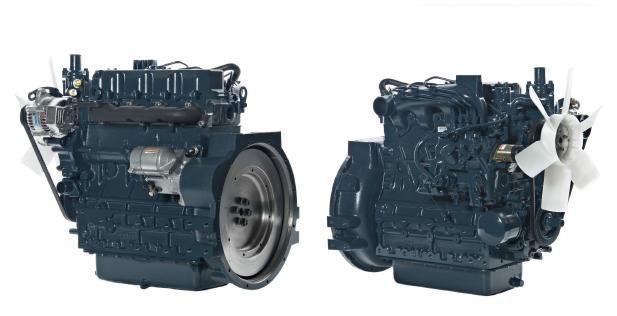

D1703-E2BG-SAE-2

D1703-E2BG-SAE-2 1G982-00000 mech. controlled , high fan

(D1703-M-E3BG-SAE-2 1J982-00000 electr. controlled, low fan)

Kubota BG Series pic 8



Model

Stand-by
(SAE J1349)
50 Hz 1500 rpm kW
(HP)

Continuous
(SAE J1349)
50 Hz 1500 rpm kW
(HP)

Stand-by
(SAE J1349)
60 Hz 1800 rpm kW
(HP)

Continuous
(SAE J1349)
60 Hz 1800 rpm kW
(HP)

D1105-BG2

20.1 (27.0)

17.2 (23.1)

24.2 (32.5) 20.2 (27.1)



D1703-E2BG-SAE-2 Power Pack

Technical specification

Model D1703-BG
Number of Cylinders  3
Type  Vertical, Water-cooled, 4 cycle diesel engine
Bore * Stroke            mm (in.)  87.0 * 92.4 (3.43 * 3.64)
Total Displacement 1647 (100.5)
STEANDBY
ISO 3046                 kW/min-1 (rpm)
SAE J-1349            HP/min-1 (rpm)
    15.0 / 1500                           18.1 / 1800
20.1 / 1500                         24.3 / 1800
NET Continuous
ISO 3046                kW/min-1 (rpm)
SAE J-1349           HP/min-1 (rpm)
 12.7 / 1500                             15.2 / 1800
 17.2 / 1500                             20.2 / 1800
Governer Regulation  Less than 5%
Combustion Chamber Type  Spherical type (E-T.V.C.S.: Three Vortex Combustion System)
Fuel Injection Pump Type  PFR
Governer   Mechanical all speed governer
Direction of Rotation  Counter-clockwise (viewed from flywheel side)
Nozzle Type  Throttle type
Injection Timing  0,2487 rad (14.25 °) before T.D.C.
Firing Order  1-2-3
Injection Pressure  13.73 Mpa (140.0 kgf/cm2, 1991 psi)
Compressiion Ratio  22.0 : 1
Lubricating System  Forced lubrication by trochoid pump
Oil Pressure Indication  Electrical type switch
Lubrication Filter  Full flow paper filter (Cartridge type)
Cooling System Pressurized radiator, forced circulation with water pump
Starting System Electric Starting with Starter
Starting Motor  12 V, 1.4 kW
Starting Support Device  By glow plug in combustion chamber
EGR  NONE
Battery  12 V, 60 AH, equivalent
Charging Alternator  12 V, 480 W
Fuel  Diesel Fuel №. 2-D (ASTM D975)
Lubricating Oil (API Classification)  СF or other applicable grade
Lubricating Oil Capacity
Oil Pan Depth 90 mm (3.3 in.)
Oil Pan Depth 124 mm (4.88 in.)

5.6 L (1.5 U.S. gals)
 7.0 L (1.8 U.S. gals)
Weight (Dry)                         kg (Ibs) 164 (362)
Instalation Data   1500 rpm (50 Hz)                                    1800 rpm (60 Hz)
Heat rejection                     kcal/hr                        14500                                                         16600
Exhaust gas volume          m3/hr                        149.8                                                          189.9
Combustion air
requirement                        m3/hr
                       64.5                                                            77.4
Water pump                       l/min                         54                                                               64
Fun pulley                          mm  104
Fun drive pulley                 mm 102
 Pulley ratio                          0.866


Kubota BG Series pic 9

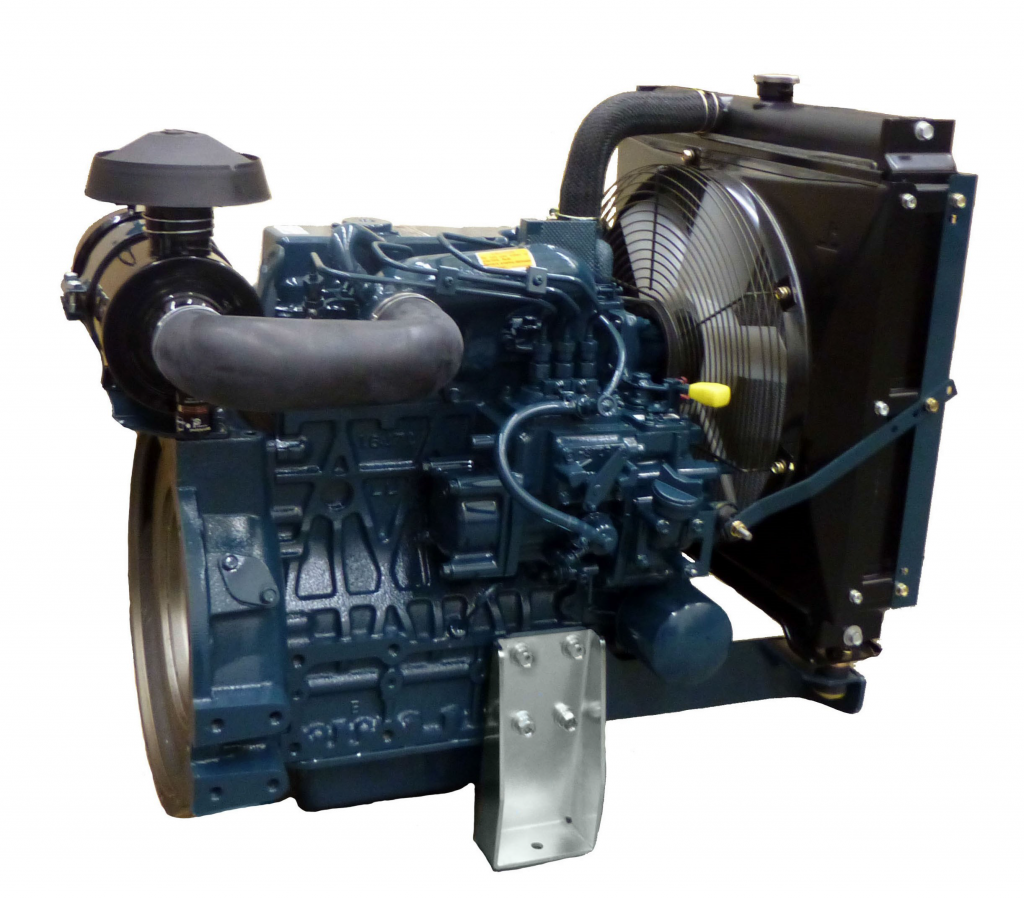

D1703-E2BG-SAE-2 Power Pack





D2203-E2BG-SAE-2 Power Pack


          Kubota BG Series pic 10

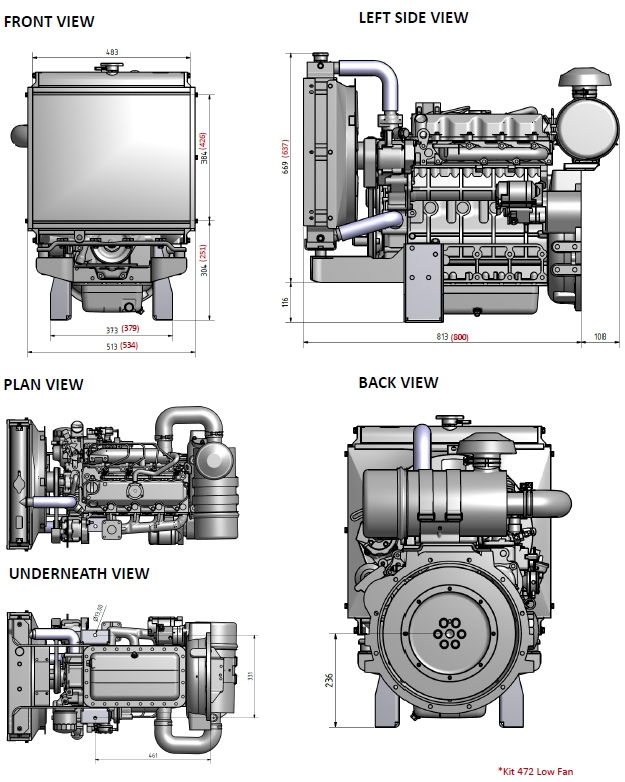

D1703-E2BG-SAE-2 Power Pack

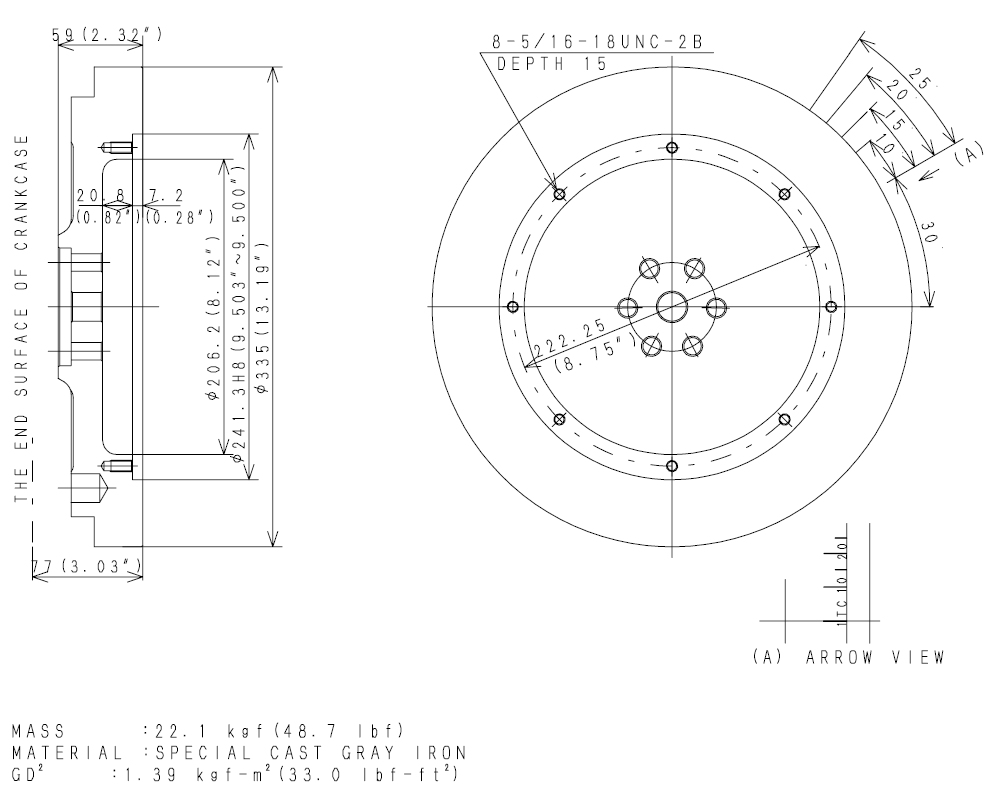

Flywheel 17299-25015 SAE 7 1/2“ short


        Kubota BG Series pic 11



Flywheel housing 17158-04610 SAE No. 4 short

Kubota BG Series pic 12
D1703-E2BG-SAE-2 Power Pack

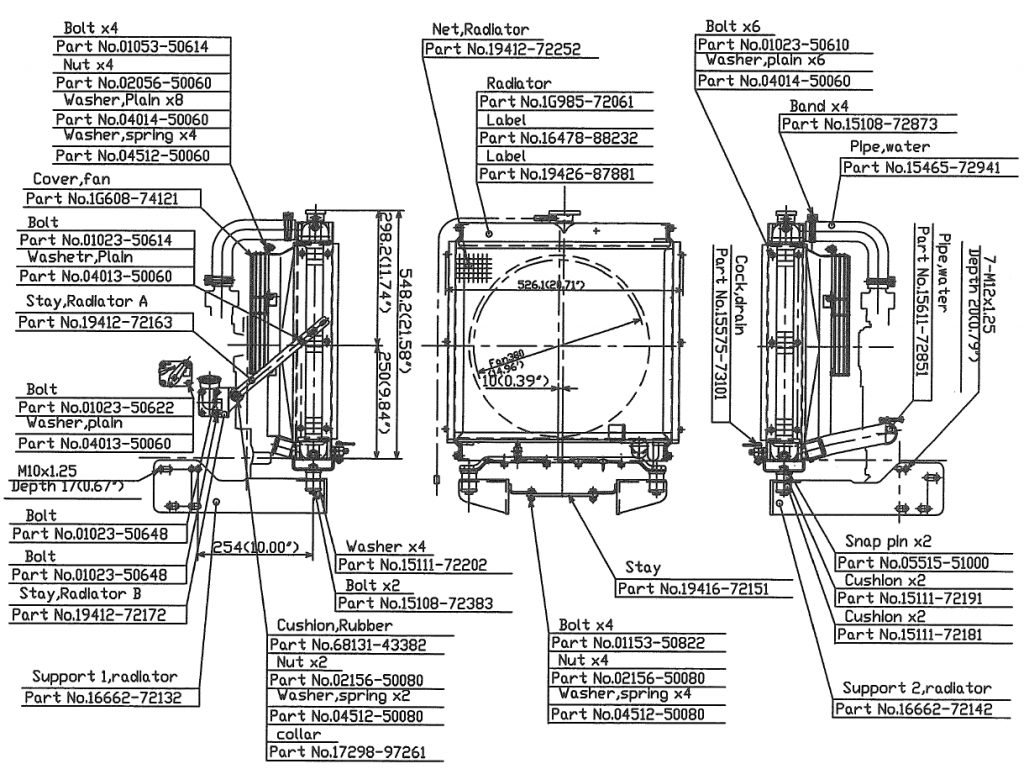

Radiator Kit 519 for high fan

 Kubota BG Series pic 13

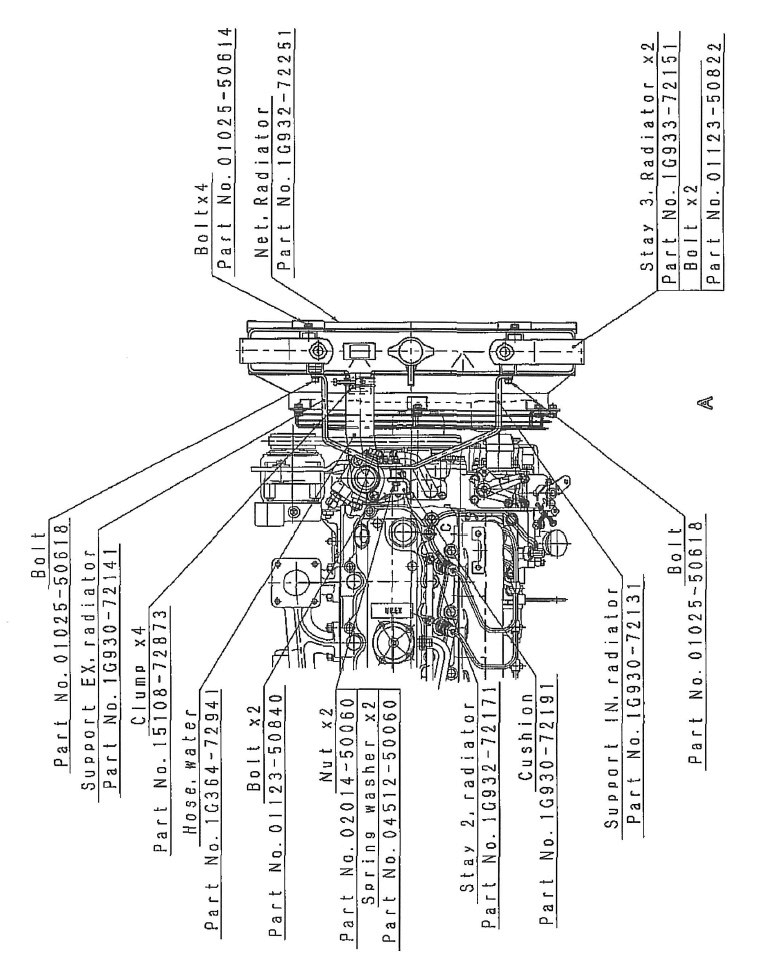

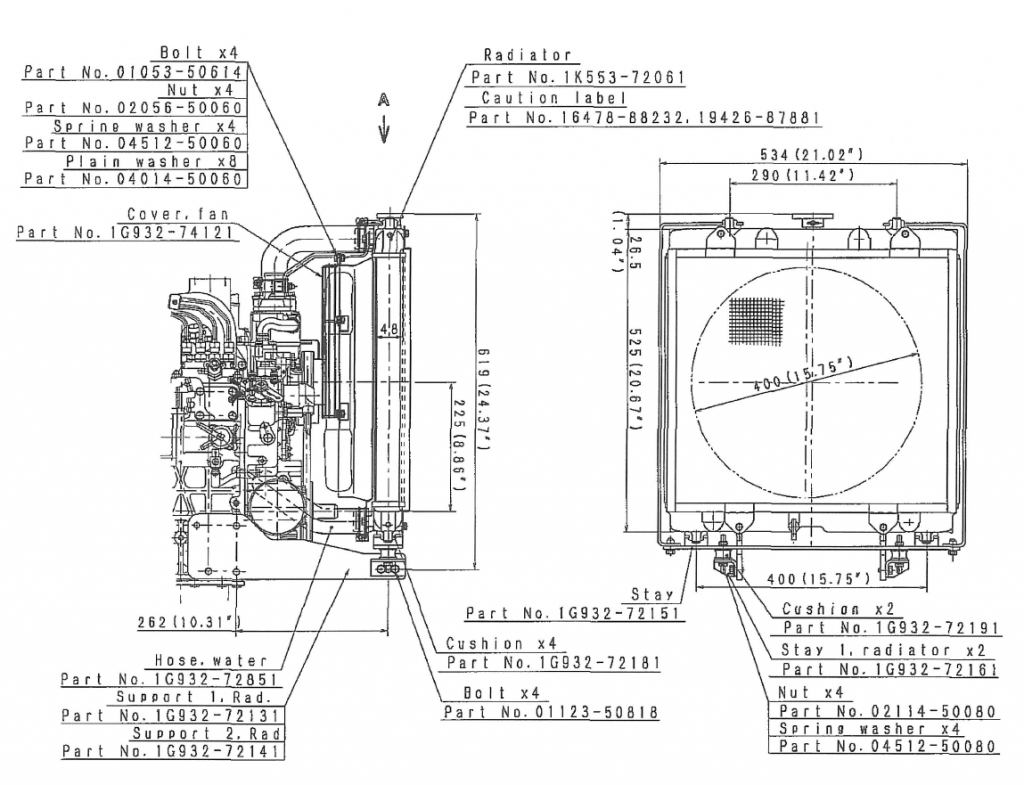

Radiator Kit 472 for low fan

Kubota BG Series pic 14Kubota BG Series pic 15

Reserve Tank Kit 474 - is required


kubota

V2203-E2BG-SAE-2

V2203-E2BG-SAE-2 1G985-00000 mech. controlled, high fan

(V2203-M-E3BG-SAE-2 1J985-00000 electr. controlled, low fan)

Kubota BG Series pic 16



Model

Stand-by
(SAE J1349)
50 Hz 1500 rpm kW
(HP)

Continuous
(SAE J1349)
50 Hz 1500 rpm kW
(HP)

Stand-by
(SAE J1349)
60 Hz 1800 rpm kW
(HP)

Continuous
(SAE J1349)
60 Hz 1800 rpm kW
(HP)

D1105-BG2

20.1 (27.0)

17.2 (23.1)

24.2 (32.5) 20.2 (27.1)



D2203-E2BG-SAE-2 Power Pack

Technical specification

Model V2203-BG
Number of Cylinders  4
Type  Vertical, Water-cooled, 4 cycle diesel engine
Bore * Stroke            mm (in.)  87.0 * 92.4 (3.43 * 3.64)
Total Displacement 2197 (134.1)
STEANDBY
ISO 3046                 kW/min-1 (rpm)
SAE J-1349            HP/min-1 (rpm)
     20.1 / 1500                         24.2 / 1800
27.0 / 1500                        32.5 / 1800
NET Continuous
ISO 3046                kW/min-1 (rpm)
SAE J-1349           HP/min-1 (rpm)
 17.2 / 1500                             20.2 / 1800
 23.1 / 1500                             27.1 / 1800
Governer Regulation  Less than 5%
Combustion Chamber Type  Spherical type (E-T.V.C.S.: Three Vortex Combustion System)
Fuel Injection Pump Type  PFR
Governer   Mechanical all speed governer
Direction of Rotation  Counter-clockwise (viewed from flywheel side)
Nozzle Type  Throttle type
Injection Timing  0,2487 rad (14.25 °) before T.D.C.
Firing Order  1-2-3-4
Injection Pressure  13.73 Mpa (140.0 kgf/cm2, 1991 psi)
Compressiion Ratio  22.0 : 1
Lubricating System  Forced lubrication by trochoid pump
Oil Pressure Indication  Electrical type switch
Lubrication Filter  Full flow paper filter (Cartridge type)
Cooling System Pressurized radiator, forced circulation with water pump
Starting System Electric Starting with Starter
Starting Motor  12 V, 1.4 kW
Starting Support Device  By glow plug in combustion chamber
EGR  NONE
Battery  12 V, 88 AH, equivalent
Charging Alternator  12 V, 480 W
Fuel  Diesel Fuel №. 2-D (ASTM D975)
Lubricating Oil (API Classification)  СF or other applicable grade
Lubricating Oil Capacity
Oil Pan Depth 90 mm (3.3 in.)
Oil Pan Depth 124 mm (4.88 in.)

7.6 L (2.0 U.S. gals)
 9.5 L (2.5 U.S. gals)
Weight (Dry)                         kg (Ibs) 195 (430)
Instalation Data   1500 rpm (50 Hz)                                    1800 rpm (60 Hz)
Heat rejection                     kcal/hr                        20200                                                         24000
Exhaust gas volume          m3/hr                        199.8                                                          253.3
Combustion air
requirement                        m3/hr
                       86.0                                                            103.2
Water pump                       l/min                         56                                                               67
Fun pulley                          mm  104
Fun drive pulley                 mm 102
 Pulley ratio                          0.832

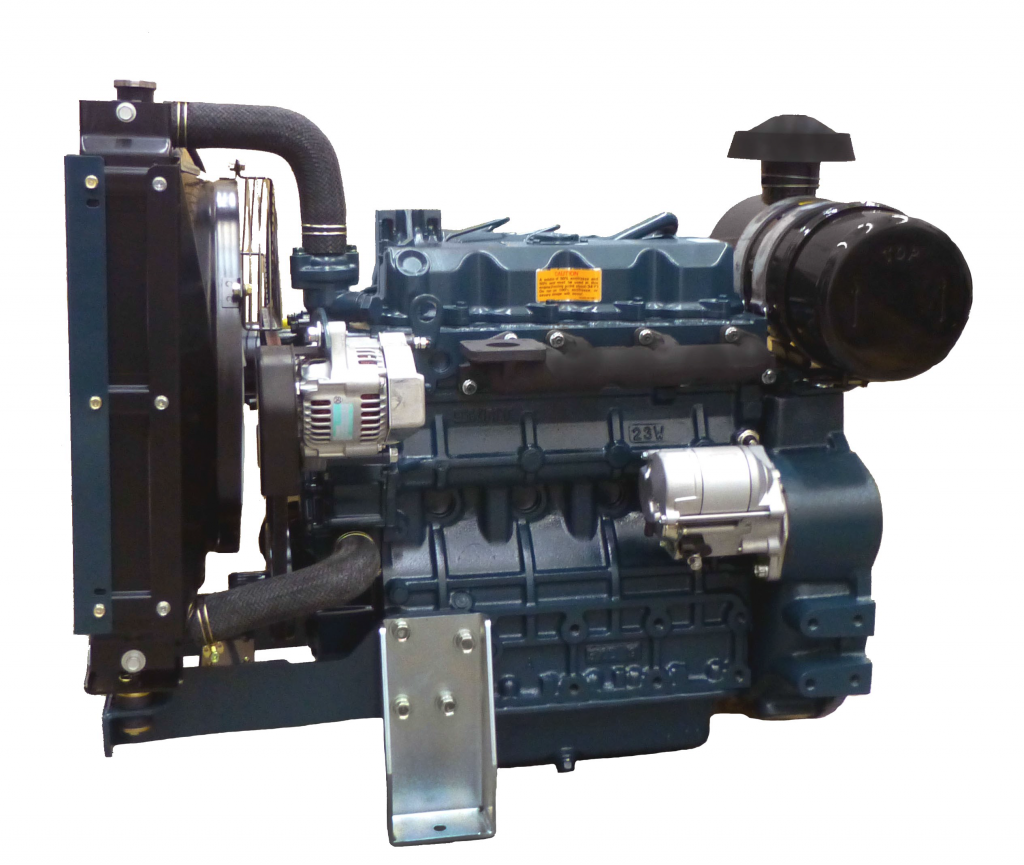

D2203-E2BG-SAE-2 Power Pack

Kubota BG Series pic 17

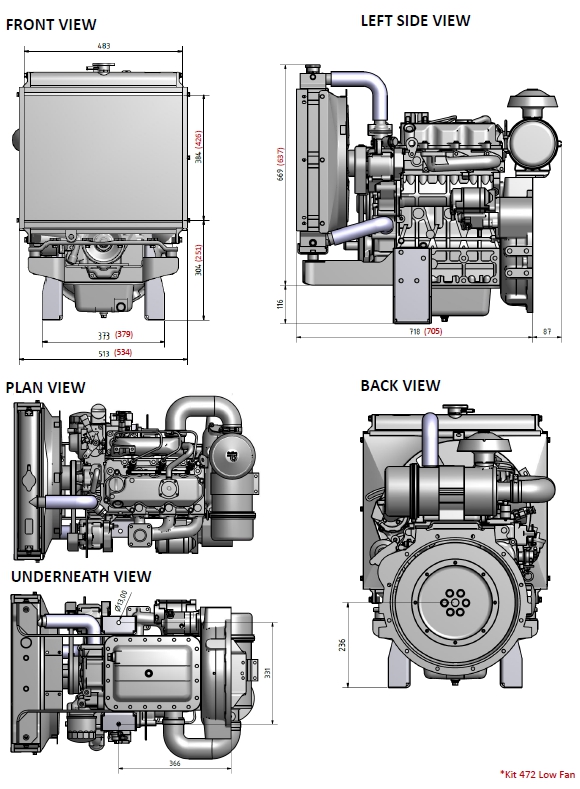

D2203-E2BG-SAE-2 Power Pack
Kubota BG Series pic 18
D2203-E2BG-SAE-2 Power Pack

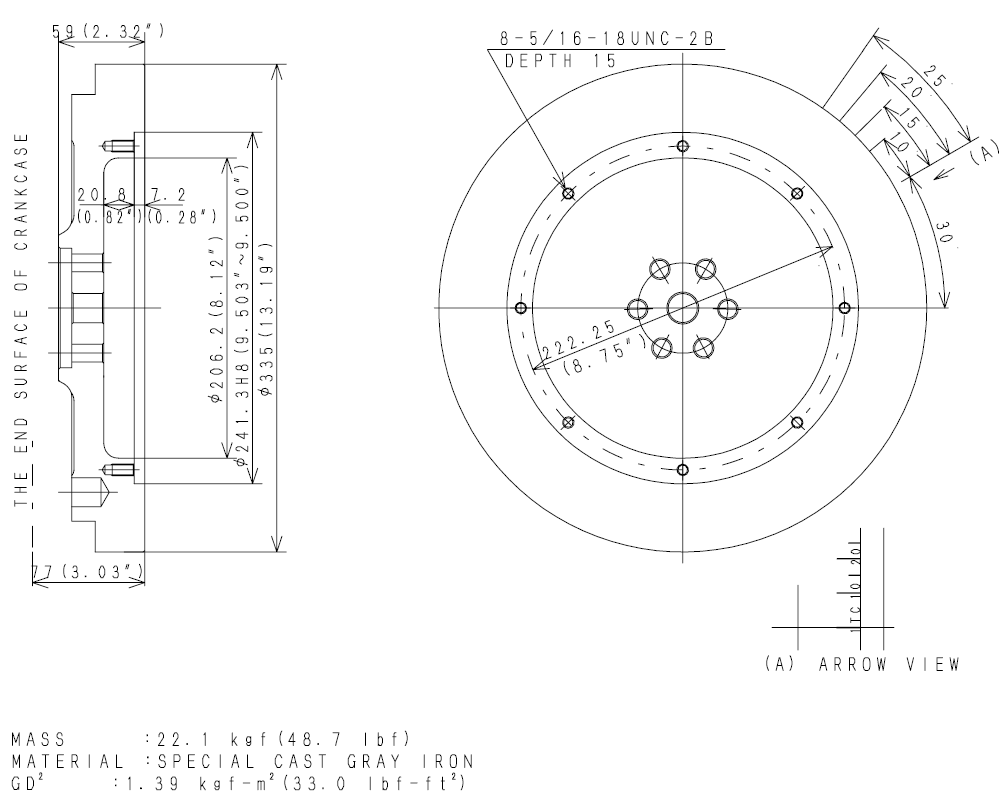

Flywheel 17158-25015
Kubota BG Series pic 19

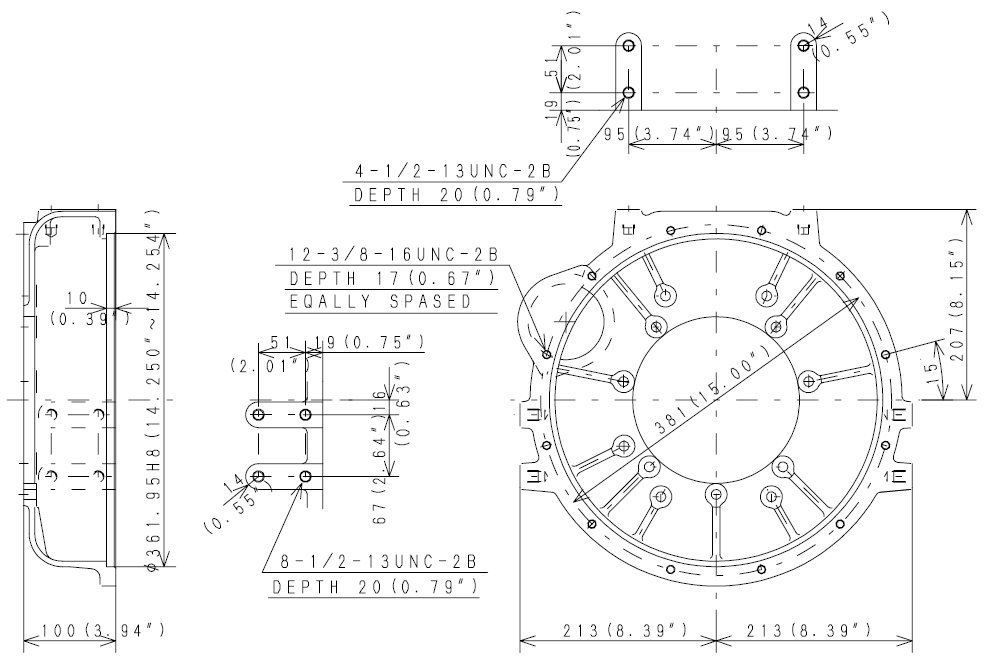

Flywheel housing 17158-04610

 Kubota BG Series pic 20


D2203-E2BG-SAE-2 Power Pack

Radiator Kit 519 for high fan
Kubota BG Series pic 21
Radiator Kit 472 for low fan
Kubota BG Series pic 22Kubota BG Series pic 23
Reserve Tank Kit 474 - is required


EXPERIENCE

With over 80 years of experience in the diesel engine business Kubota is proud to be the number one engine manufacturer of diesel engines below 100 HP. No other “small” engine comes close to offering the advantages that a Kubota engine brings. Trust the industry leader, use Kubota power.

RELIABLE AND DURABLE QUALITY

Kubota Corporation's Quality Inspection Facility is state-of-the-art and is dedicated to meet the high quality expectations of the Kubota name. Kubota engines will provide you with the tried and true quality needed for your generator applications.

EMISSIONS

The Engine Product Environmental Management Section at Kubota Corporation in Osaka, Japan takes all possible measures to ensure that the engines produced by Kubota meet the world's highest level of adaptability to pass future emission regulations.
Kubota’s BG Series meets all current emission levels for EPA, CARB, EU and MOC.

GLOBAL DISTRIBUTION NETWORK

Kubota engines are used all over the world. Kubota is committed to support-ing its customers on a global basis by continuing to expand its distribution network world wide. Kubota provides all of its distributors with sales support and corporate sponsored service and product training in order to keep everyone up to date on the latest technical information.


Kubota BG Series_1
